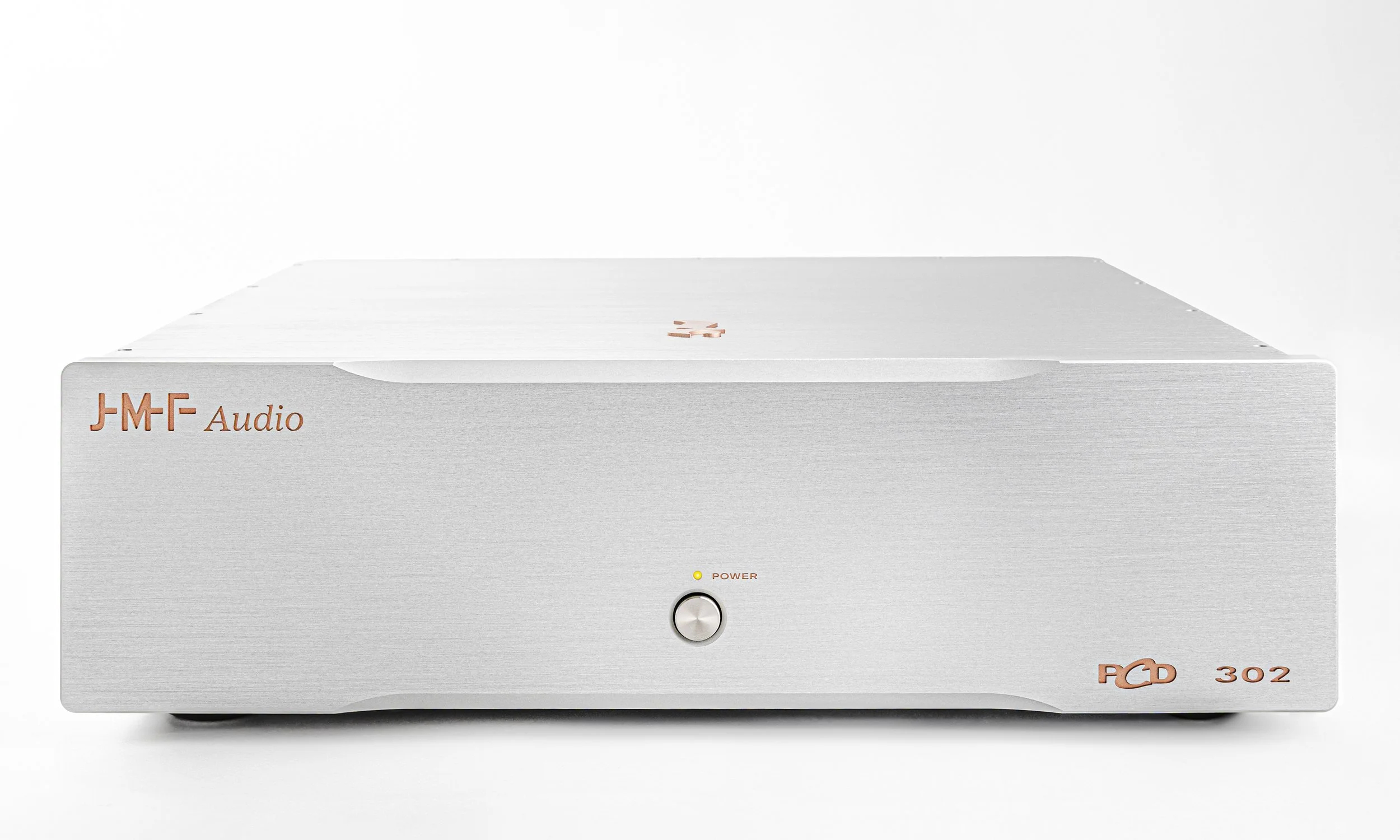

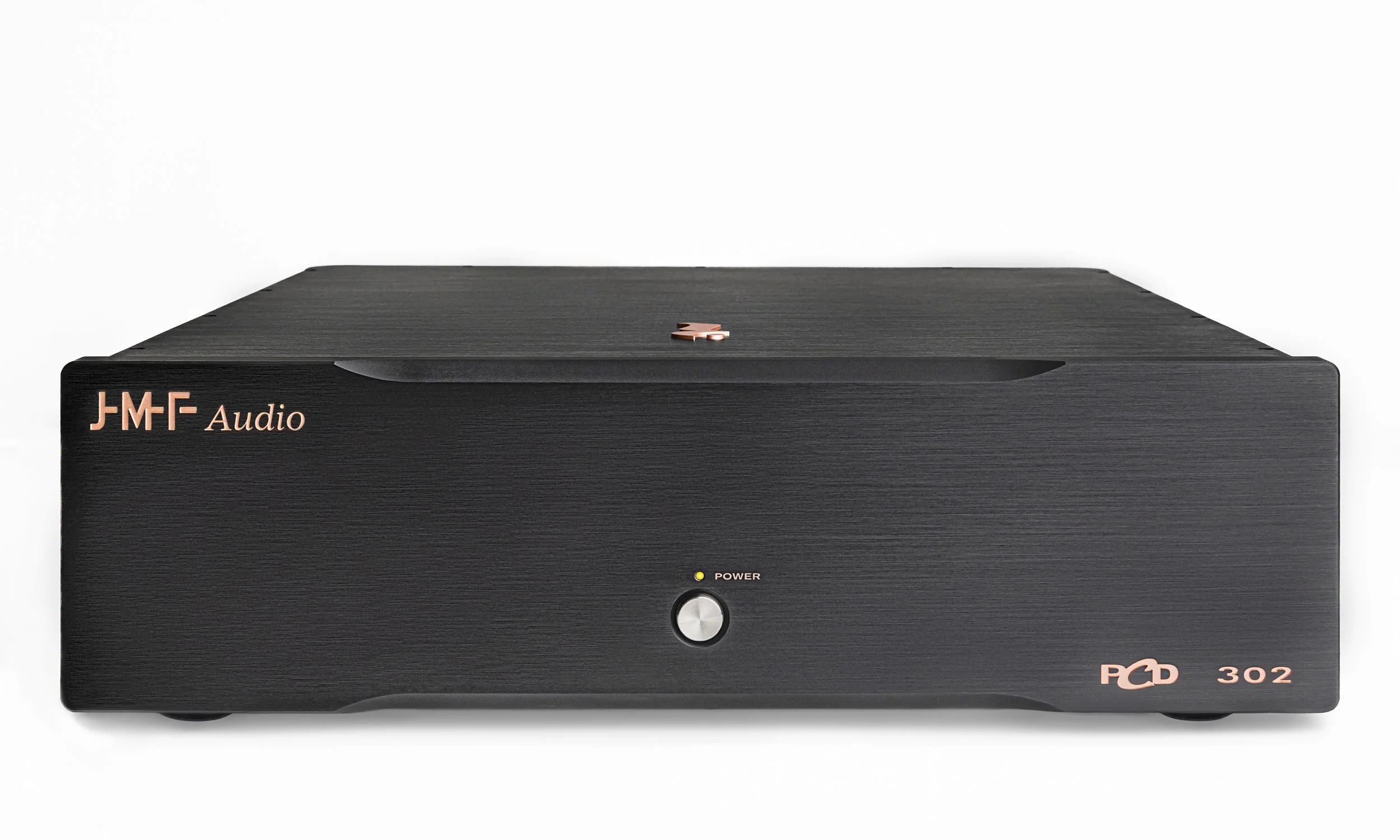

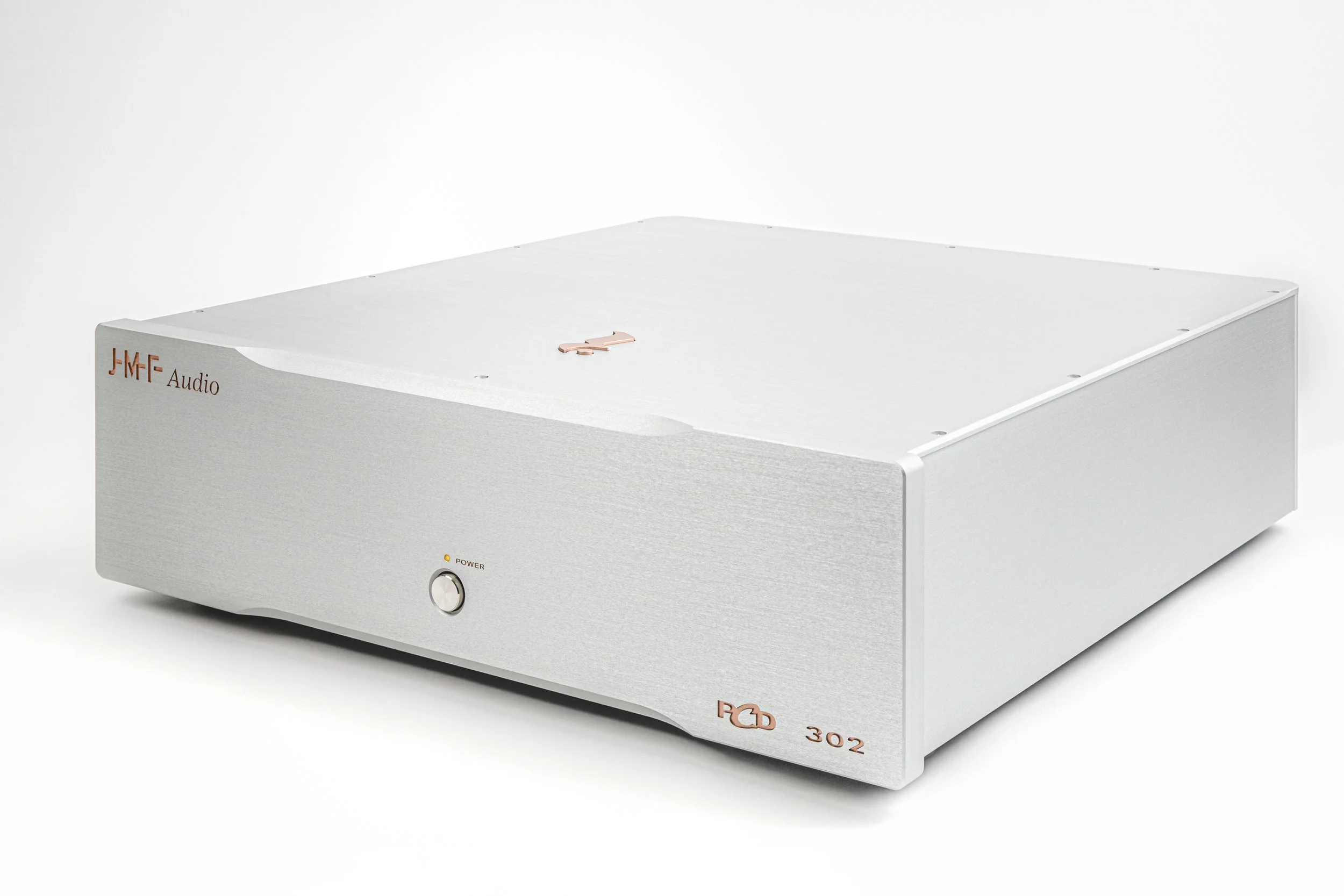

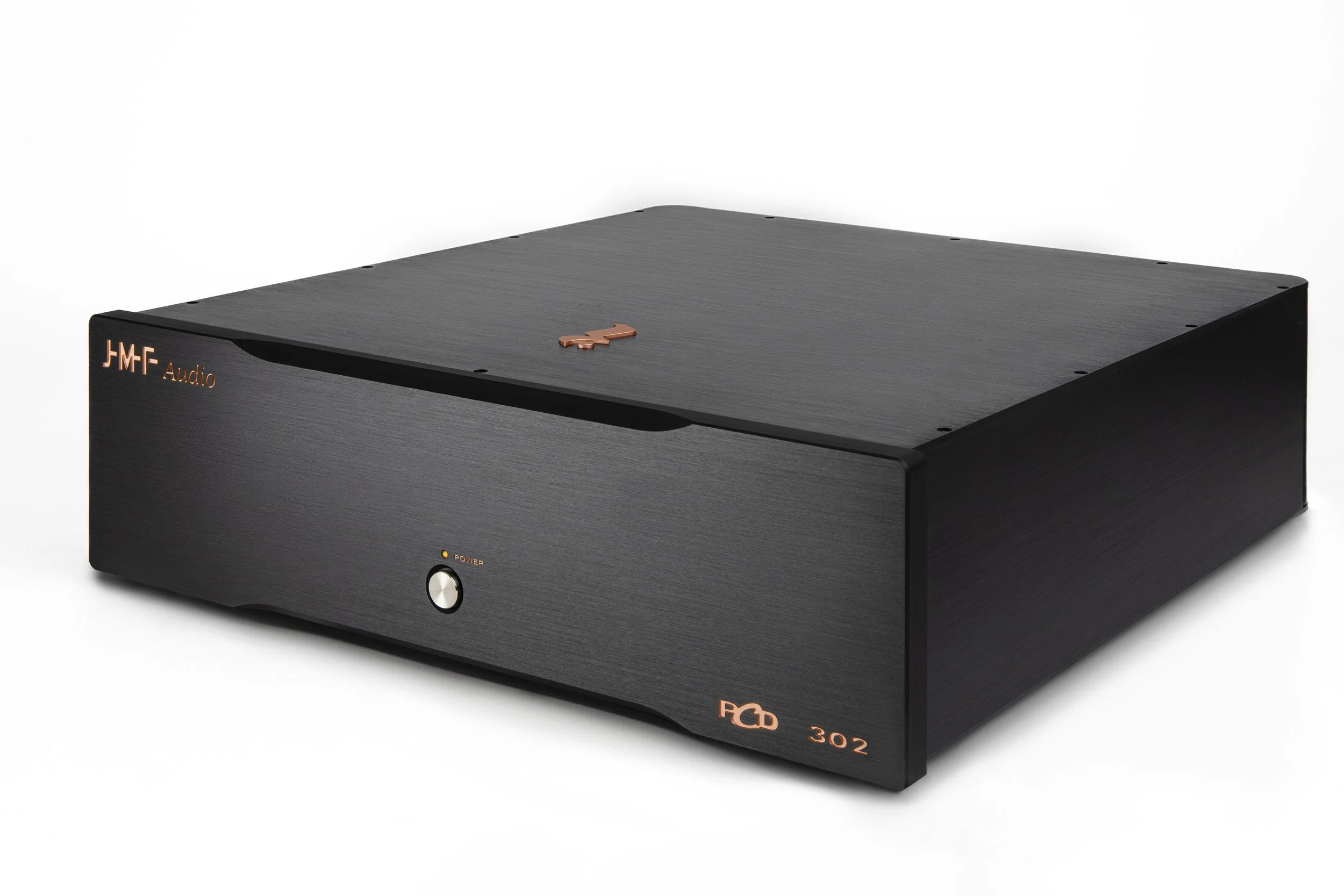

PCD 302 mains filter
PCD 302 rear view US version

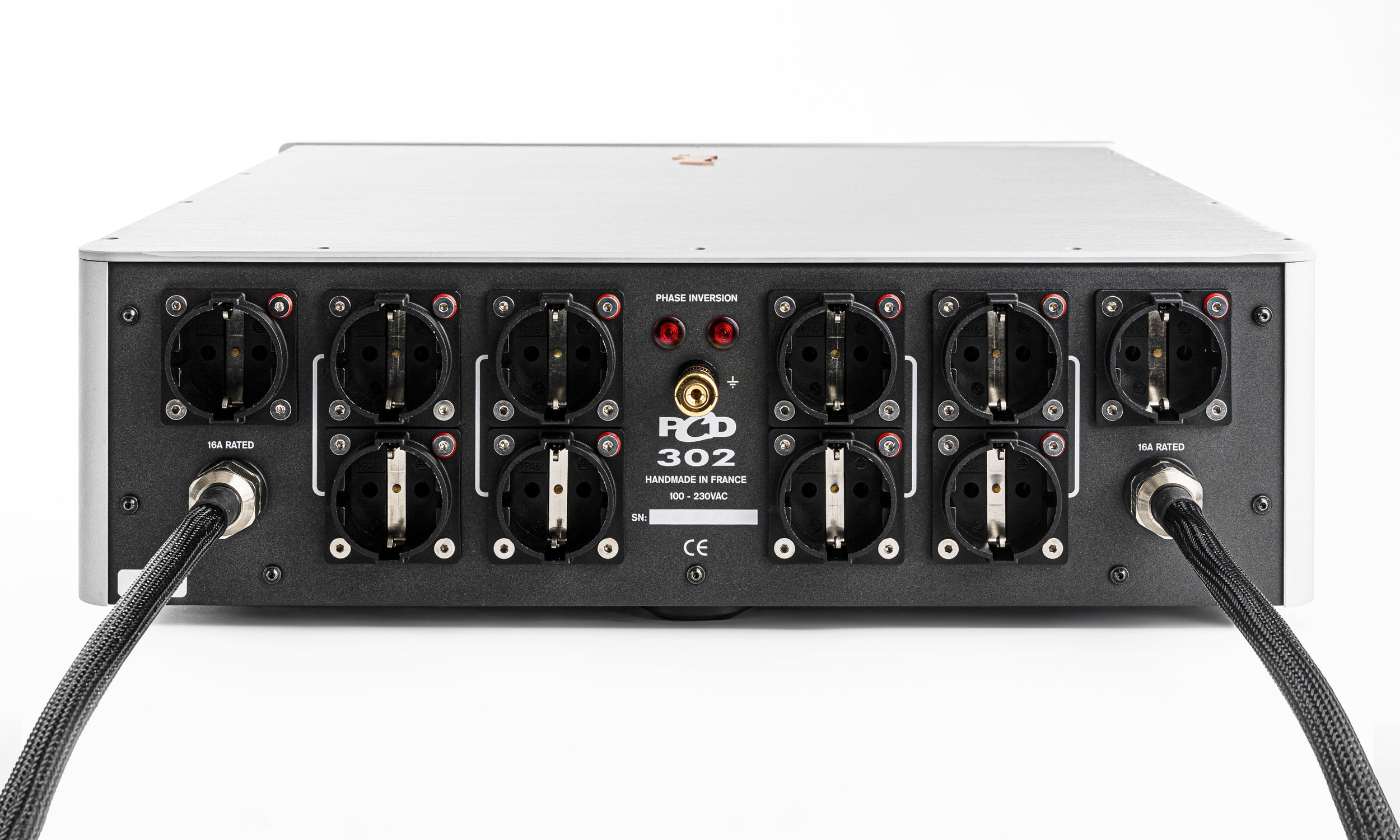

PCD 302 rear view EU version
The PCD 302 is the reference mains filter, featuring 10 filtered outputs, 6 independent BDF 223™ cells, 2 independent channels powered through individual PC3 cords. With the new Orose® case, the PCD 302 is made of 3 chassis, including advanced vibration dampening.
For further information, please refer to the main page > PCD mains filters
Technical specifications:
Input current max
Output power max
32A in total (16A nominal on each input)
7kW in total (3.5kW per channel / 230V)
JMF Audio PC3 attached for each channel
Input power cord
EU Schuko for Europe or US version
Output socket
Sequential, from left to right
Power-up type
100V to 240V AC (automatic, no servicing needed)
Input voltage range
Orose® up to 16mm thick machined anodized aluminum external case, machined steel buttons and rose-gold
Enclosure
482 wide (front panel) x 539 deep x 149 high mm including feet (19” wide x 21.5” deep x 5.9” high)
Dimensions
23 kg (51 lbs)
Net weight
Silver or Black anodizing
Finishes
