PCD 102 mains filter
PCD 102 rear view in the EU version

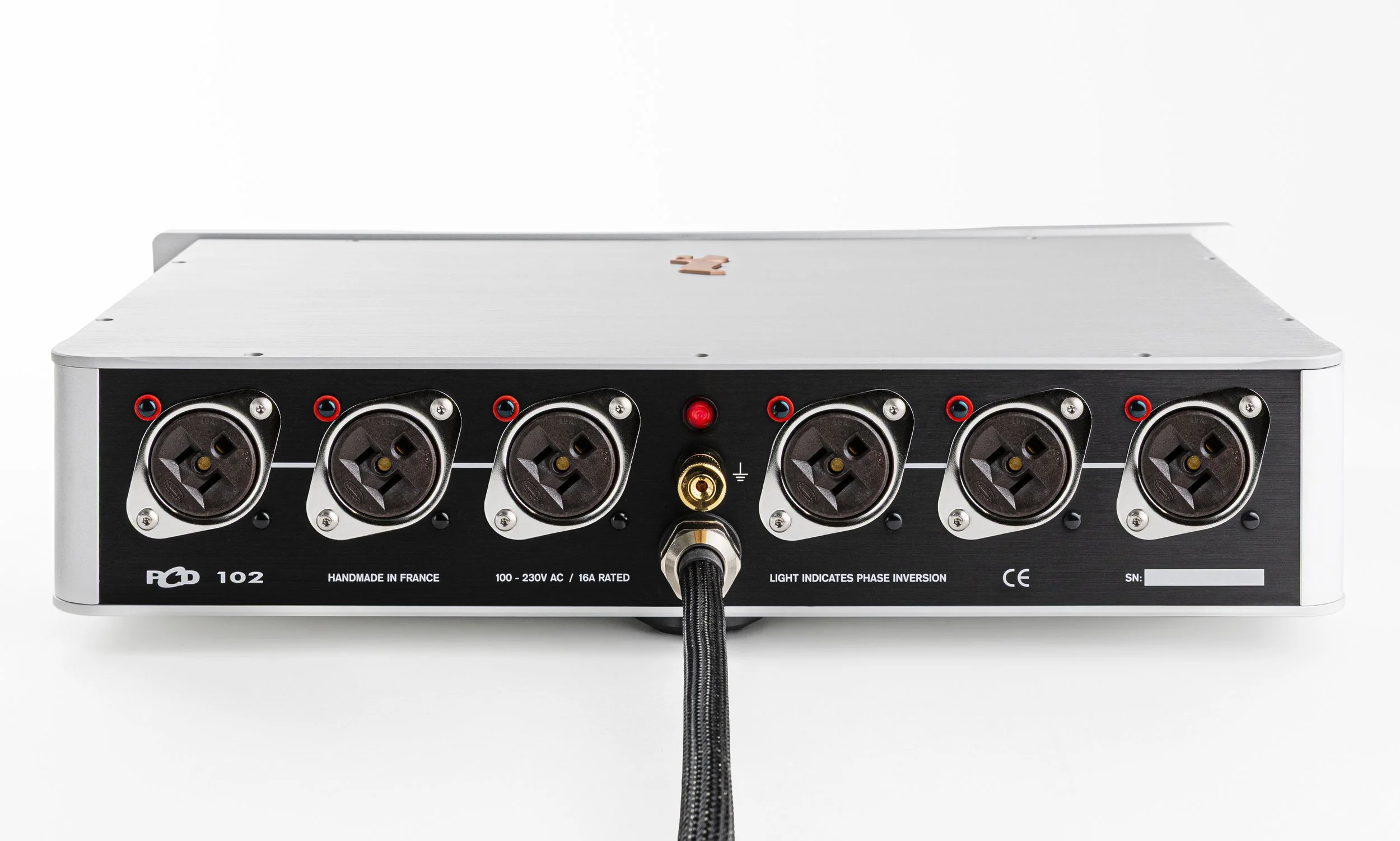

PCD 102 rear view in the US version
The PCD 102 is the alternative to the reference PCD 302 mains filter. It features 6 filtered outputs, 2 independent BDF 223™ cells, 2 sections powered through a PC3 cord. Originally designed with the new Orose® case, the PCD 102 is made of 2 chassis, including advanced vibration dampening.
For further information, please refer to the main page > PCD mains filters
Technical specifications:
Input current max
Output power max
16A in total
3.5kW in total (shared on the output sockets)
Finishes
Silver or Black anodizing
JMF Audio PC3 attached
Input power cord
EU Schuko for Europe or US version
Output socket
Instant
Power-up type
100V to 240V AC (automatic, no servicing needed)
Input voltage range
Orose® up to 16mm thick machined anodized aluminum external case, machined steel buttons and rose-gold
Enclosure
482 wide (front panel) x 320 deep x 106 high mm including feet (19” wide x 12.6” deep x 4.2” high)
Dimensions
13 kg (29 lbs)
Net weight
For further information, please refer to the main page > PCD mains filters
